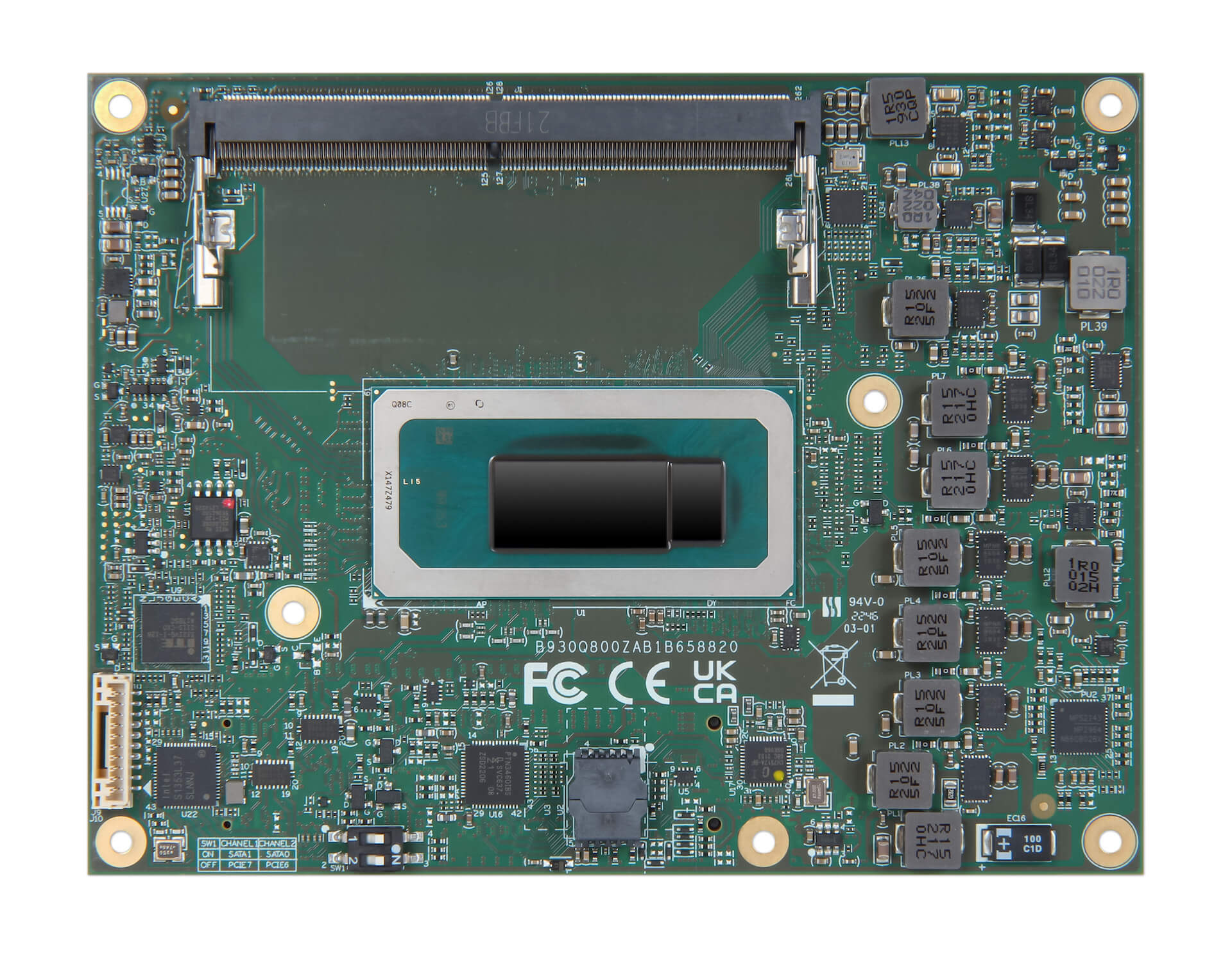

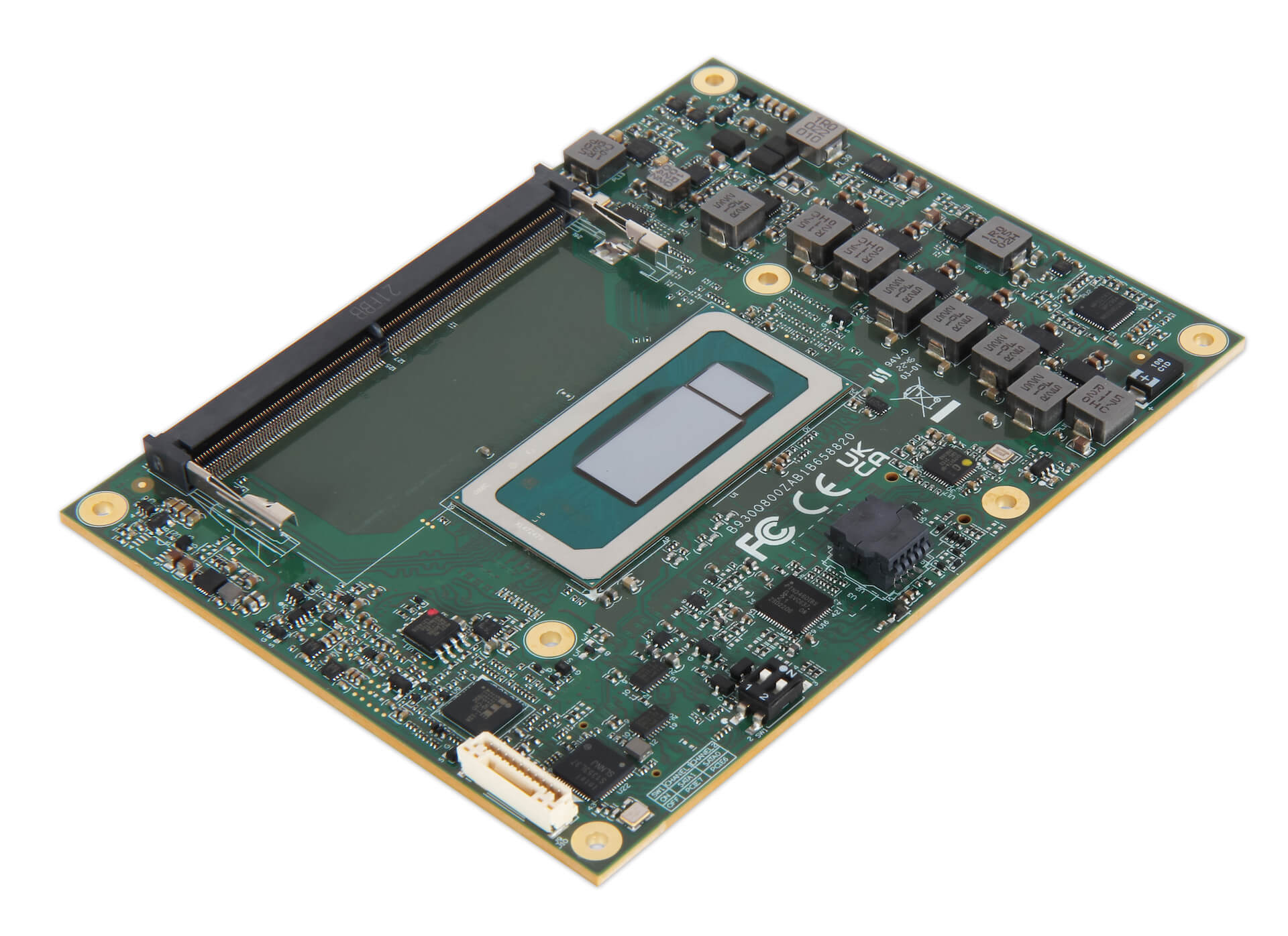

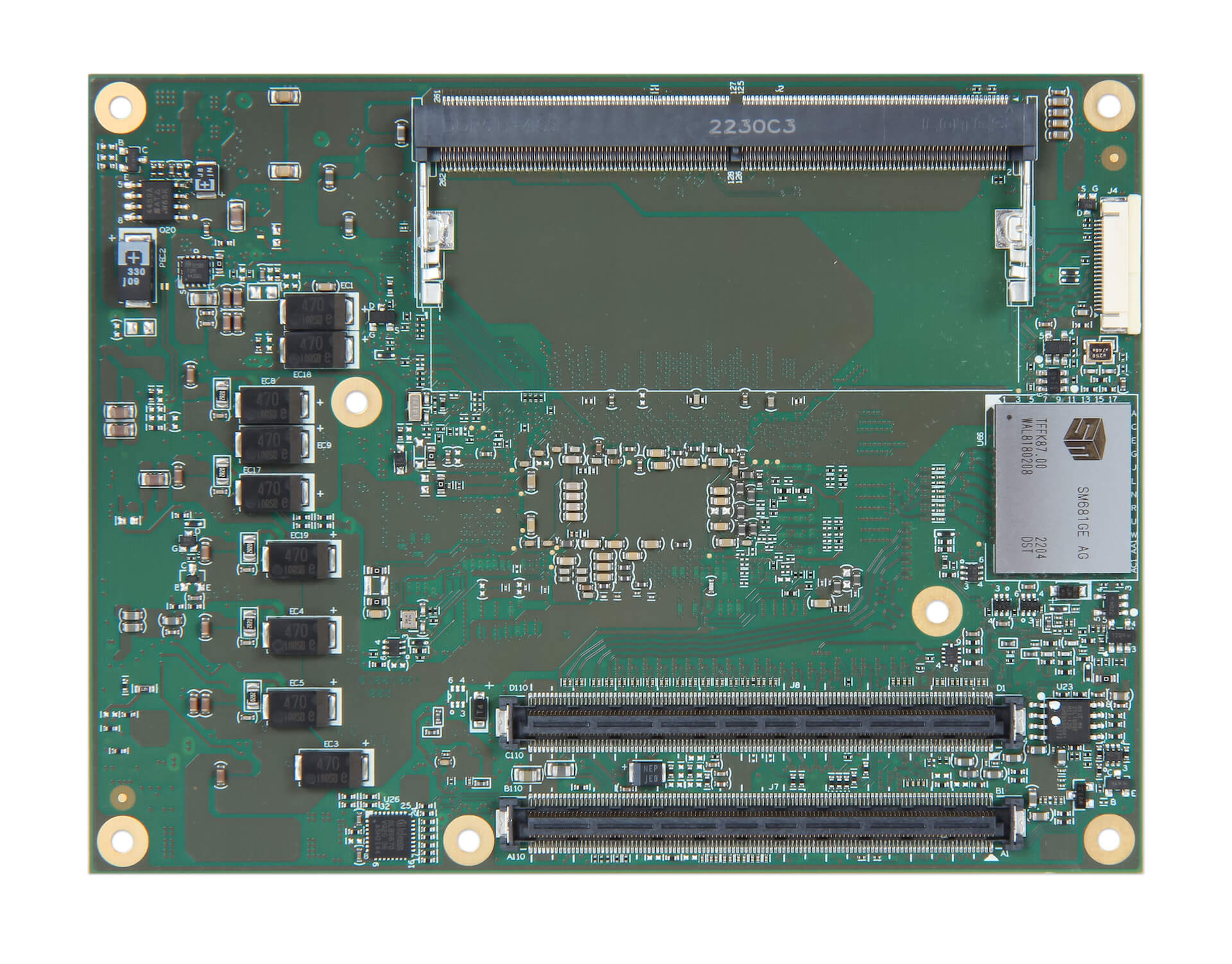

PCOM-B658VGL is COM Express module based on Intel<sup>?</sup> 13<sup>th</sup> Gen H platform. It is compatible with COM Express Rev3.1 standard. The platform adopts Intel 7 lithography and VNNI instruction set, offers advance computing power with 15~45W thermal and embedded use condition for wide range application. PCOM-B658VGL supports PCIe Gen4 lanes, and 2x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 8x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2, and 2x SATA III. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.
| General | |
| Product | PCOM-B658VGL |
| Form Factor | COM Express Type6 Basic Size (125 X 95mm) |
| CPU Series | H series |
| Cores P+E/Threads | Up to 6P + 8E/20T |
| Frequency | 2.1 ~ 2.7 GHz |
| Turbo Frequency | Up to 5.0 GHz |
| Intel? Smart Cache | Up to 24 MB |
| Intel? Gfx EU | Up to 96 EU |
| Graphics Max Freq. | Up to 1.40 GHz |
| Processor TDP (Up / Nominal / Down) |
65W / 45 W / 35 W |
| PCH | SoC |
| Memory Type/Speed | DDR5 SO-DIMM up to 96GB 5200MT/s |
| ECC Memory Support | Non-ECC SO-DIMM (Support IBECC on industrial SKU) |
| I/O INTERFACE | |||
| SATA | 2x SATA (share with PCIe lanes) | ||
| USB | 2x USB4 (option) 4x USB 3.2 Gen2 8x USB 2.0 |
||
| Ethernet | Intel? I226 series (Support TSN/TCC on industrial SKU) | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input/4 output) | |
| I2C | Baud Rate: 400KHz | ||
| SMBus | Baud Rate: 100KHz | ||
| UART | TX/RX signal only | ||
| PCI Express Gen4 | 1x Gen4 x8 (only H series), 2x Gen4 x4 (All series) | ||
| PCI Express Gen3 | 8x Gen 3.0 x1 (2 lanes share with SATA) | ||
| Storage | Up to 1TB onboard NVMe SSD (share with PCIe Gen4 x4 lanes) | ||
| Display | Module display interface | Carrier output options | Resolution |
| eDP / LVDS (default eDP) | eDP up to HBR3 | 3840×2160@120Hz | |
| LVDS (24bit, dual channel) | 1920 x 1200@60Hz | ||
| DDI 1/2/3 | DP up to HBR3 | 3840×2160@120Hz | |
| HDMI? 2.1 | 3840×2160@120Hz | ||
| VGA | VGA | 1920 x 1200@60Hz | |
| Security | TPM 2.0 | ||
| CPU SKU List (H series) | ||||||
| CPU Series | H series Embedded | H series Industrial | ||||
| i7-13800HE | i5-13600HE | i3-13300HE | i7-13800HRE | i5-13600HRE | i3-13300HRE | |
| Cores P+E/Threads | 6P + 8E/20T | 4P + 8E/16T | 4P + 4E/12T | 6P + 8E/20T | 4P + 8E/16T | 4P + 4E/12T |
| Frequency | 2.5 GHz | 2.7 GHz | 2.1 GHz | 2.5 GHz | 2.7 GHz | 2.1 GHz |
| Turbo Frequency | 5.0 GHz | 4.8 GHz | 4.6 GHz | 5.0 GHz | 4.8 GHz | 4.6 GHz |
| Intel? Smart Cache | 24 MB | 18 MB | 12 MB | 24 MB | 18 MB | 12 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 48 EU | 96 EU | 80 EU | 48 EU |
| Graphics Max Freq. | 1.40 GHz | 1.40 GHz | 1.30 GHz | 1.40 GHz | 1.40 GHz | 1.30 GHz |
| Video Decode Boxes | 2 | 2 | 1 | 2 | 2 | 1 |
| Processor TDP (Up / Nominal / Down) | 65W / 45 W / 35 W | 65W / 45 W / 35 W | ||||
| IBECC | No | Yes | ||||
| TSN/TCC | No | Yes | ||||
| Support Temperature | 0°C to 60°C | -40°C to 85°C | ||||
| MECHANICAL & ENVIRONMENT | |
| Dimension | 125 x 95mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| Storage Temperature | -40°C to 85°C |
| Operation Temperature | 0°C to 60°C -40°C to 85°C(Industrial SKU) |
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS | Windows 10/11 Ubuntu |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B658VGL-13800HE | AB1-3R24 | Available |
| PCOM-B658VGL-13600HE | AB1-3R52 | Available |
| PCOM-B658VGL-13300HE | AB1-3R51 | Available |
| PCOM-B658VGL-13800HRE | AB1-3R74 | Available |
| PCOM-B658VGL-13600HRE | AB1-3S19 | Available |
| PCOM-B658VGL-13300HRE | AB1-3S20 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler (Heatpipe) | B9972161 | Available |
| Heatsink (Heatpipe) | B830B941 | Available |
| Heatspreader (Heatpipe) | B830B951 | Available |
| PCOM-C605R Mini-ITX Carrier |
AB1-3P78 | Available |
| PCOM-C60B ATX Evaluation Carrier |
AB1-3G22 | Available |
